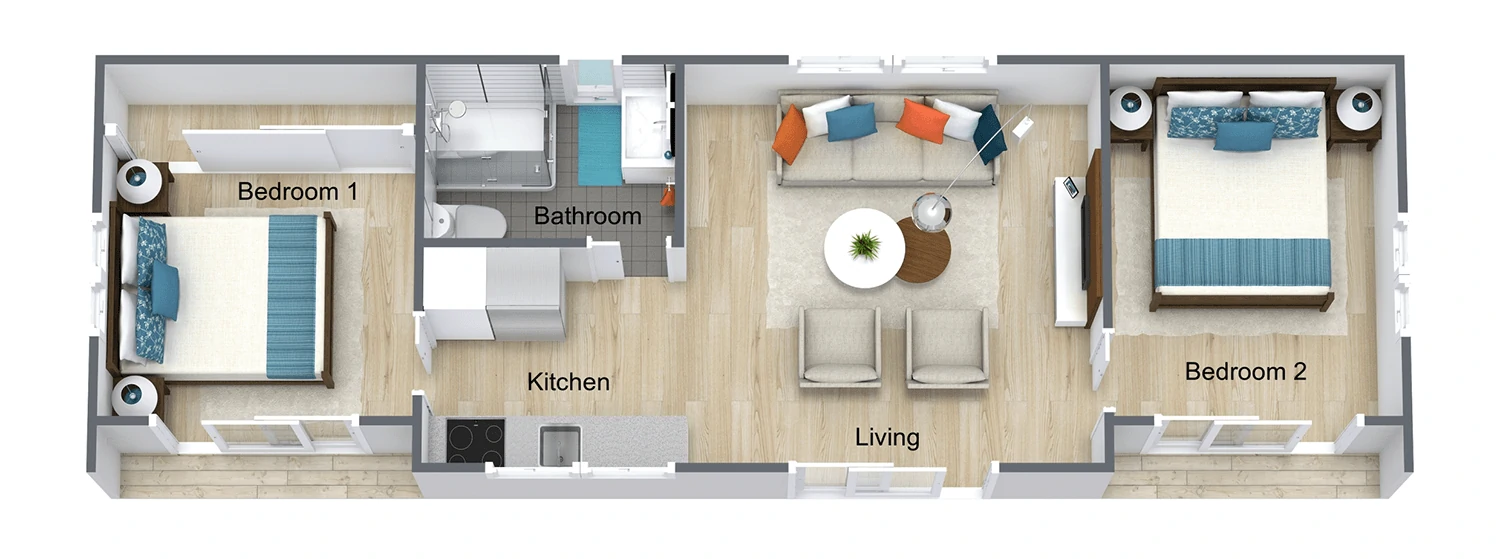

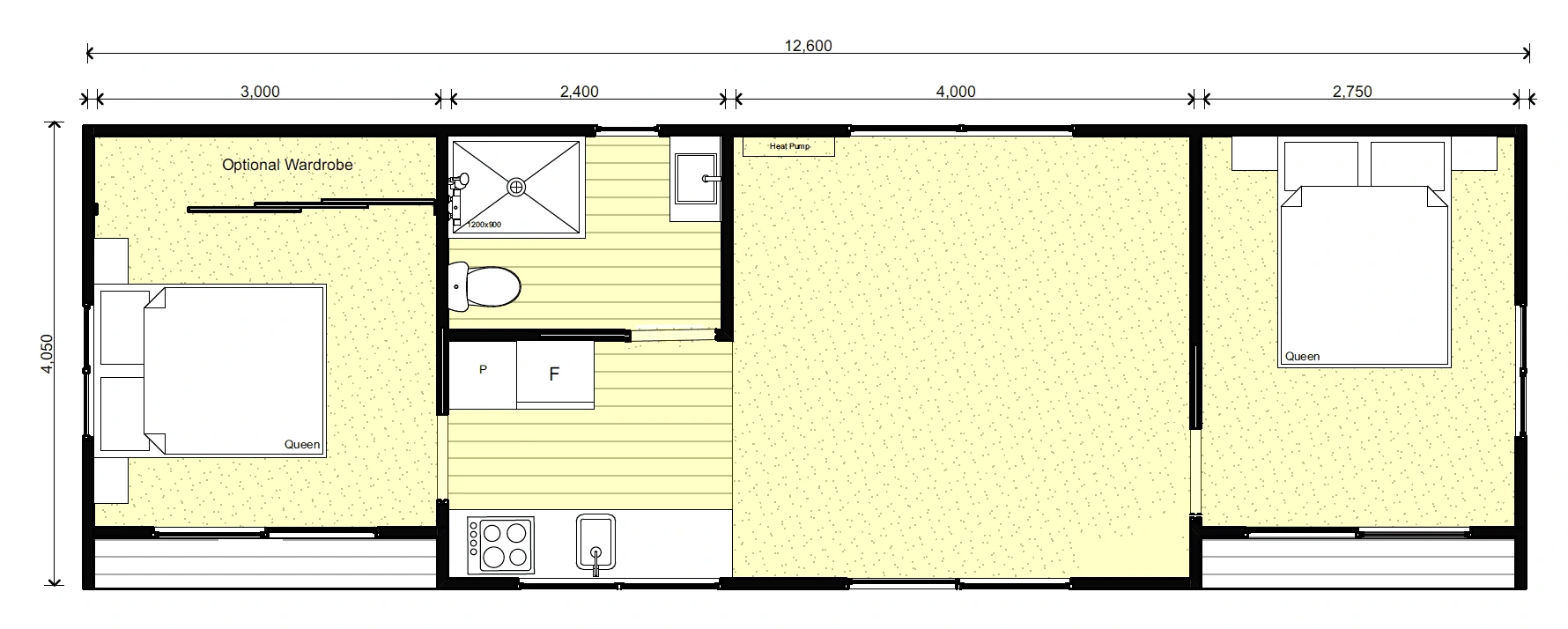

CLICK TO ENLARGE FLOOR PLANS AND PROFILES

Rata 250

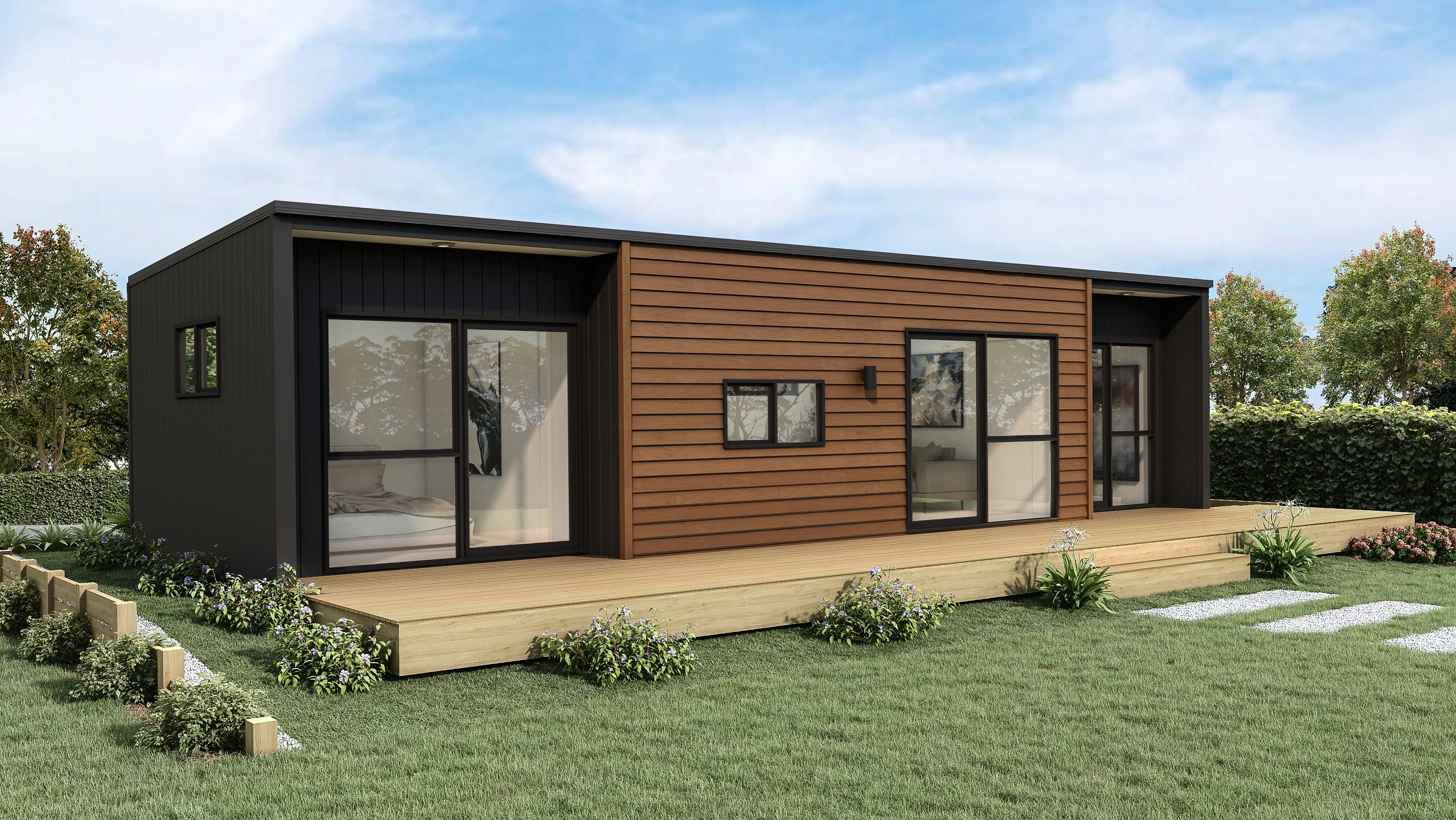

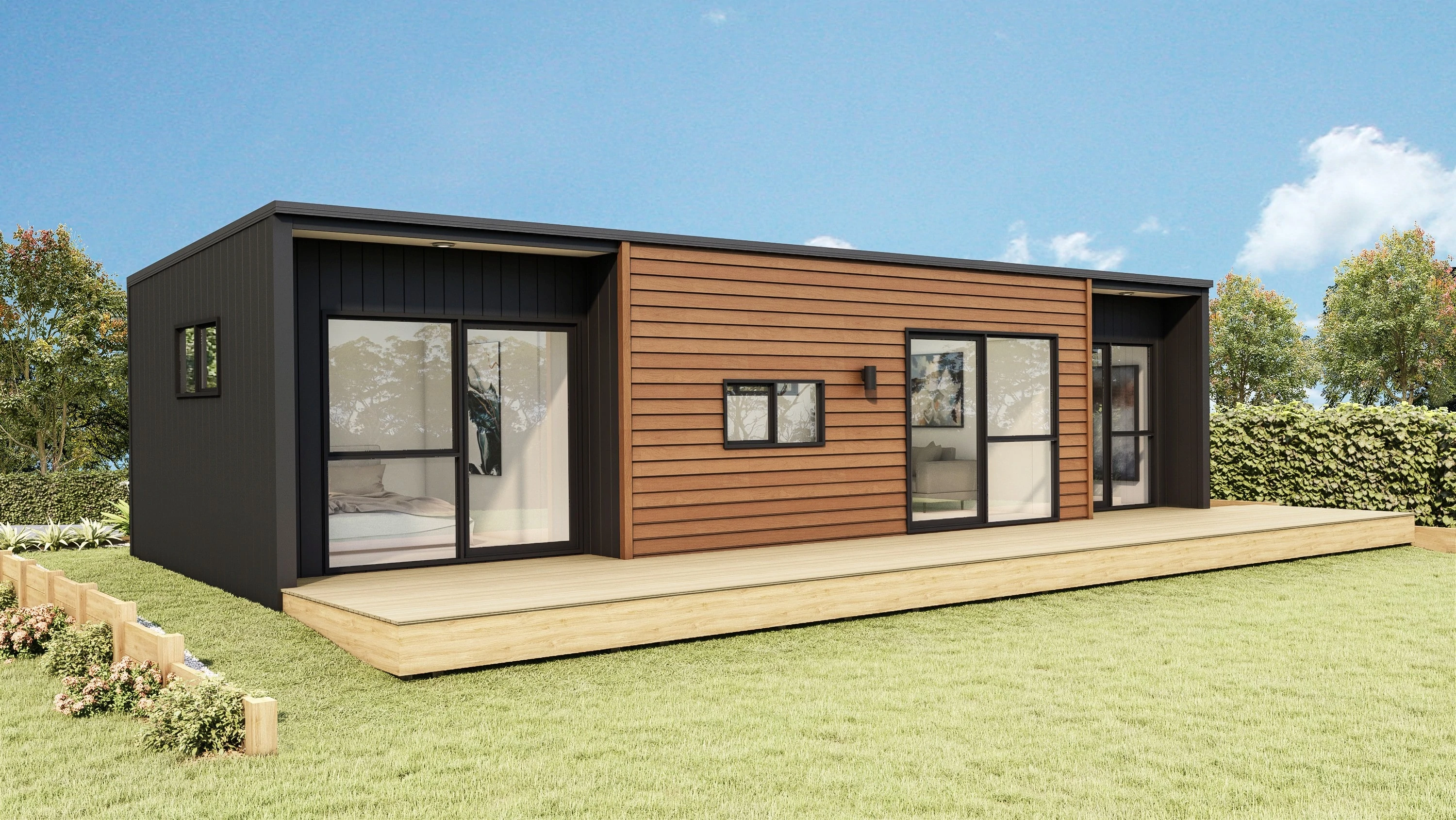

TWO BEDROOM - 50sqm The RATA 250 Tiny Home delivers exceptional value without compromise. Featuring two generously sized double bedrooms, this design comfortably accommodates a small family of 3–4, making it both practical and versatile. As with all Footprint builds, you can personalise the look of your home by mixing and matching from our standard cladding range, including Innova Duragroove and Innova Duraplank. The Rata model shown here highlights Duragroove cladding, enhanced with a striking upgrade: a beautifully crafted Modified Pine feature wall that creates a warm and inviting focal point. Note: The photo is an artist’s impression, refer to the specifications for standard inclusions.
DOWNLOAD PLAN
FREE PROJECT ESTIMATE
CONTACT US

Pricing: Material Supplies

Flatpack Kitset: Material supplies only.
  • $131,000: Includes flatpack kitset material supplies for your builder to construct.

Pricing: Fully Constructed

Complete Build: Includes material supply and construction.
  • $185,880: Includes flat-pack materials, fully constructed, based on ex-yard build costs.
LOCKABLE SHELL: This design can also be supplied to a lockable shell stage only. Contact us if you’d like more details.

Specifications

  • Working drawings including Producer Statements for Design (PS1) for OFF SITE build (yard only)
  • Steel Frame Engineering Producer Statements for Design (PS1) designed to suit VHWZ (very High Wind Zone)
  • Insulation to comply with your Climate Zone
  • Steel Framing roof, subfloor & walls
  • Plyfloor/Strandfloor flooring
  • KiwiColour VITOR +/Coloursteel Endura roofing and flashings
  • Marley Typhoon PVC gutters and downpipes
  • Double Glazed OMEGA aluminium joinery with LOW E glass (subject to change for South Island requirements)
  • 9.5mm Innova cladding (several profiles available)
  • 450mm pine timber landing as detailed on plan
  • 12mm Plywood linings with flush v jointed detail throughout
  • Flush Core internal doors
  • Satin Chrome privacy and passage door hardware
  • Timber skirting, scotia and architraves
  • 26ltr LPG Gas califont
  • Kaboodle kitchen
  • Kitchen splash back
  • Electric or gas hob and under bench oven
  • Stainless steel sink and drainer tray and chrome sink mixer
  • Acrylic shower tray and liner
  • Floor standing vanity
  • Satin Chrome bathroom tapware
  • Vinyl and Carpet
  • Window coverings knockout roller/venetians
OPTIONAL: Upgrades/downgrades available, multiple cladding options including modified pine. Contact us for a detailed specification list.
NZ-wide material supply, with construction by your builder or one of our LBP network. Prices include GST and are based on ex-yard build costs. Onsite builds may incur extra costs such as travel and additional site requirements. Council fees, consenting, site works, transport/material delivery, and engineering reports are excluded. Final pricing varies by location and climate zone. Footprint Homes NZ can also assist with the full process, from preliminary site research, working drawings, PIM and building consent applications, wastewater systems, solar, site works, and build management.
